Basic ion exchange processes
in water treatment

Introduction

The ion exchange technology is used for different water treatment applications:

• Softening (removal of hardness)
• De-alkalisation (removal of bicarbonate)
• Decationisation (removal of all cations)
• Combined dealkalisation and softening
• Demineralisation (removal of all ions)
• Mixed bed polishing
• Nitrate removal
• Selective removal of various contaminants

You will find here a description of the above processes, the exchange reactions and the changes in water. Resin types are described in another page, as well as regeneration methods. See also the general introduction to ion exchange, and an overview of ion exchange column designs in other pages.

Softening

Natural water contains calcium and magnesium ions (see water analysis) which form salts that are not very soluble. These cations, together with the less common and even less soluble strontium and barium cations, are called together hardness ions. When the water evaporates even a little, these cations precipitate. This is what you see when you let water evaporate in a boiling kettle on the kitchen stove.

Hard water also forms scale in water pipes and in boilers, both domestic and industrial. It may create cloudiness in beer and soft drinks. Calcium salts deposit on the glasses in your dishwasher if the city water is hard and you have forgotten to add salt.

Strongly acidic cation exchange resins (SAC, see resin types) used in the sodium form remove these hardness cations from water. Softening units, when loaded with these cations, are then regenerated with sodium chloride (NaCl, table salt).

Reactions

Here the example of calcium:

2 R-Na + Ca⁺⁺ R₂-Ca + 2 Na⁺

R represents the resin, which is initially in the sodium form. The reaction for magnesium is identical.

The above reaction is an equilibrium. It can be reversed by increasing the sodium concentration on the right side. This is done with NaCl, and the regeneration reaction is:

R₂-Ca + 2 Na⁺ 2 R-Na + Ca⁺⁺

What happens to the water

Raw water

SAC (Na)

Softened water

The water salinity is unchanged, only the hardness has been replaced by sodium. A small residual hardness is still there, its value depending on regeneration conditions.

Uses

Examples for the use of softeners:

• Treatment of water for low pressure boilers
• In Europe, most dishwashers have a softening cartridge at the bottom of the machine
• Breweries and soft drink factories treat the water for their products with food grade resins

Softening the water does not reduce its salinity: it merely removes the hardness ions and replaces them with sodium, the salts of which have a much higher solubility, so they don't form scale or deposits.

De-alkalisation

This particular process uses a weakly acidic cation resin. This resin type is capable of removing hardness from water when it also contains alkalinity. After treatment, the water contains carbon dioxide, that can be eliminated with a degasifier tower. The cation resin is very efficiently regenerated with an acid, usually hydrochloric acid.

Reactions

Here the example of calcium:

2 R-H + Ca⁺⁺(HCO₃^–)₂ R₂-Ca + 2 H⁺ + 2 HCO₃^–

and the hydrogen cations combine with the birarbonate anions to produce carbon dioxide and water:

H⁺ + HCO₃^– CO₂ + H₂O

What happens to the water

Raw water	WAC (H)	Decarbonated water
Recombination of hydrogen and bicarbonate and removal of carbon dioxide with the degasifier:
Decarbonated water	DEG	Degassed water

The salinity has decreased. Temporary hardness is gone.

Uses

De-alkalisation is used:

• In breweries
• In household drinking water filters
• For low pressure boilers
• As a first step before the SAC exchange in demineralisation

De-alkalisation reduces the salinity of water, by removing hardness cations and bicarbonate anions.

Combined dealkalisation + softening

This process is sometimes called Carbomix, although the resins are not mixed. It uses two resins in series, a WAC in the H⁺ form followed by a SAC in the Na⁺ form. Both resins can be put as a Stratabed in a single colum, or in two separate units. This is useful only when the hardness is greater than alkalinity (in meq/L) otherwise the WAC resin will do the job alone.

The reactions are shown in the sections above on de-alkalisation and softening and will not be repeated here. For the process to be efficient, de-alkalisation must take place first.

What happens to the water

The first step is dealkalisation:

Raw water

WAC (H)

Decarbonated water

The second step is softening of the residual (permanent) hardness. The produced CO₂ can be degassed:

Decarbonated water

SAC (Na)

Decarbonated+softened

DEG

Final water

All hardness is gone, and the salinity has been reduced.

Regeneration is done in two steps, first with acid (preferably HCl) then with brine.

Decationisation

The removal of all cations is seldom practiced, except as a first stage of the demineralisation process, or sometimes in condensate polishing where the decationiser precedes a mixed bed unit. A strongly acidic cation exchange resin (SAC) is used in the H⁺ form.

Reactions

Here the example of sodium, but all cations react in the same way:

R-H + Na⁺ R-Na + H⁺

The equilibrium reaction is reversed for regeneration by increasing the hydrogen concentration on the right side. This is done with a strong acid, HCl or H₂SO₄:

R-Na + H⁺ R-H + Na⁺

What happens to the water

Raw water

SAC (H)

Decationised water

DEG

Decat + degassed water

In the second step, a degasifier is used again to remove the carbon dioxide formed by combining the bicarbonate anions and the released hydrogen cation. The water salinity is reduced, and the water is now acidic. A small sodium leakage is shown.

If hardness is not zero, there is a malfunction in the system.

Demineralisation

For many applications, all ions in the water must be removed. In particular, when water is heated to produce steam, any impurity can precipitate and cause damage. As there are cations and anions in the water, we must use two different types of resins: a cation exchanger and an anion exchanger. This combined arrangement produces pure water, as presented in the general introduction. Demineralisation is also called deionisation. The cation resin is used in the hydrogen form (H⁺) and the anion resin in the hydroxyl form (OH^–), so that the cation resin must be regenerated with an acid and the anion resin with an alkali.

A degasifier is used to remove the carbon dioxide created after cation exchange when the water contains a significant concentration of bicarbonate.

The cation resin is usually located before the anion resin: otherwise if the water contains any hardness, it would precipitate in the alkaline environment created by the OH^— form anion resin as Ca(OH)₂ or CaCO₃, which have low solubility.

Layout SAC – (DEG) – SBA

Let us first consider a simple demineralisation system comprising a strong acid cation exchange resin in the H⁺ form, a degasifier (optional) and a strong base anion exchange resin in the OH^– form. The first step is decationisation as shown above:

R_SAC-H + Na⁺ R_SAC-Na + H⁺

With calcium insead of sodium (also valid for magnesium and other divalent cations):

2 R_SAC-H + Ca⁺⁺ (R_SAC)₂-Ca + 2 H⁺

In the second step, all anions are removed with the strong base resin:

R_SBA-OH + Cl^– R_SBA-Cl + OH^–

The weak acids created after cation exchange, which are carbonic acid and silicic acid (H₂CO₃ and H₂SiO₃) are removed in the same way:

R_SBA-OH + HCO₃^– R_SBA-HCO₃^– + OH^–

And finally, the H⁺ ions created in the first step react with the OH^– ions of the second step to produce new molecules of water. This reaction is irreversible:

H⁺ + OH^– H₂O

What happens to the water

1: Cation exchange removing all cations (as in decationisation) followed by degassing:
Raw water	SAC (H)	Decationised water	DEG	Decat + degassed water
2: Anion exchange removing all anions (strong and weak acids):
Decat + degassed water	SBA (OH)	Demineralised water

Demineralised water is completely free of ions, except a few residual traces of sodium and silica, because the SAC and SBA resins have their lowest selectivity for these. With a simple demineralisation line regenerated in reverse flow, the treated water has a conductivity of only about 1 µS/cm, and a silica residual between 5 and 50 µg/L depending on the silica concentration in the feed and on regeneration conditions.
Note that the pH value should not be used as a process control, as it is impossible to measure the pH of a water with less than say 5 µS/cm conductivity.

Regeneration

The SAC resin is regenerated with a strong acid, HCl or H₂SO₄:

R-Na + H⁺ R-H + Na⁺

And the SBA resin is regenerated with a strong alkali, NaOH in 99 % of the cases:

R_SBA-Cl + OH^– R_SBA-OH + Cl^–

Layout WAC/SAC – DEG – WBA/SBA

Because weakly acidic and weakly basic resins offer a high operating capacity and are very easy to regenerate, they are used in combination with strongly acidic and strongly basic resins in large plants. The first step with the WAC resin is dealkalisation (removal of bicarbonate hardness), and the second step with the SAC removes all the remaining cations. A WAC resin is used when both hardness and alkalinity are present in large relative concentrations in the feed water.

WBA resins remove only the strong acids after cation exchange. They are not capable of removing the weak acids such as SiO₂ and CO₂. In the regenerated, free base form, they are not dissociated, so no free OH^– ions are available for neutral anion exchange. On the other hand, their basicity is enough to adsorb the strong acids created after cation exchange:

R_WBA + H⁺Cl^– R_WBA.HCl

In the last step, a SBA resin is thus required to remove the weak acids, as shown in the preceding section:

R_SBA-OH + HCO₃^– R_SBA-HCO₃^– + OH^–

What happens to the water

1 & 2: Cation exchange beginning with the removal of temporary hardness (WAC, as in dealkalisation) followed by the removal of all remaining cations (SAC):
Raw water	WAC (H)	Decarbonated water	SAC (H)	Decationised water
3 & 4: Anion exchange begining after degassing with the removal of strong acids (WBA) followed by the removal of weak acids (SBA):
Decat + degassed water	WBA (FB)	Partially demineralised	SBA (OH)	Demineralised water

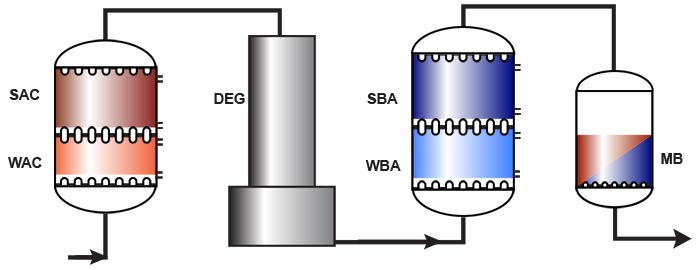

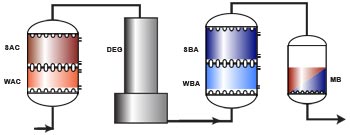

A full demineralisation line is shown below, with a cation exchange column (WAC/SAC), a degasifier, an anion exchange column (WBA/SBA), and a polishing mixed bed unit. The use of a weakly acidic resin and the degasifier column are conditioned by the presence of hardness and alkalinity in the feed water, as explained in the previous sections.

Regeneration

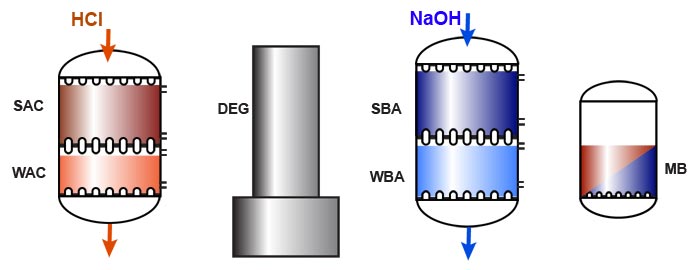

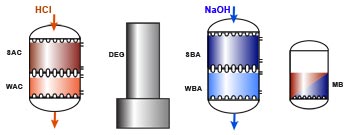

Regeneration is done in thoroughfare, which means that the regenerant first goes through the strong resin, which requires an excess of regenerant, and the regenerant not consumed by the strong resin is usually sufficient to regenerate the weak resin without additional dosage.

The cation resins are regenerated with a strong acid, preferably HCl, because H₂SO₄ can precipitate calcium.
The anion resins are regenerated with caustic soda.

The quality obtained is the same as in the simple SAC-SBA layout, but because the weak resins are practicallly regenerated "free of charge", the regenerant consumption is considerably lower. Additionally, the weak resins have a higher operating capacity than the strong resins, so the total volume of ion exchange resins is reduced.

Uses

Examples of demineralisation:

• Water for high pressure boilers in nuclear and fossil fuelled power stations and other industries. See also Condensate polishing.
• Process water for many applications in the chemical, textile and paper industries.
• Water for batteries.
• Water for laboratories.
• Rinse water used in production of computer chips and other electronic devices. See Ultrapure water.

Mixed bed polishing

The last traces of salinity and silica can be removed on a resin bed where highly regenerated strong acid cation and strong base anion resins are mixed.

Mixed bed units deliver an excellent treated water quality, but are complcated to regenerate, as the resins must first be separated by backwashing before regeneration. Additionally, they require large amounts of chemicals, and the hydraulic conditions for regeneration are not optimal. Therefore, mixed beds are usually only used to treat pre-demineralised water, when the service run is long.



What happens to the water

Practically nothing is left:

Demineralised water

SAC (H) + SBA (OH)

Nothing is left

Mixed bed polishing produces a water with less than 0.1 µS/cm conductivity. With sophisticated design and appropriate resins, the conductivity of pure water (0.055 µS/cm) can be achieved. Residual silica values can be as low as 1 µg/L.
The pH value should not be used as a process control, as pH meters are unable to operate at 1 µS/cm conductivity or below.

Capacity and throughput

The schema and treated water quality shown above apply to polishers installed downstream of an ion exchange primary demineralisation system. The feed water to the polishing unit, in this case, contains only traces of sodium and silica. The operating capacity is usually limited by the anion resin, and is very low. However, the running time for a feed water having a conductivity of 1 µS/cm is usually 2 to 4 weeks.

When the polisher is fed with water containing other ions, such as after a reverse osmosis plant, the situation is completely different. RO permeates often contain a relatively high proportion of carbon dioxide, and this is then the limiting factor. The treated water quality here may have a conductivity higher than 0.1 µS/cm (but not more than 1 µS/cm) and the throughput is only one or a few days.

Uses

• Treatment of water pre-demineralised with ion exchange resins
• Polishing of reverse osmosis permeate
• Polishing of sea water distillate
• Treatment of turbine condensate in power stations
• Treatment of process condensate in various industries
• Production of ultra-pure water for the semiconductors industry
• Service de-ionisation (with off-site regenerated columns)

Nitrate removal

Nitrate can be removed selectively from drinking water using strong base anion resins in the chloride cycle, i.e. regenerated with a NaCl brine. The reaction is:

R_SBA-Cl + NO₃^– R_SBA-NO₃ + Cl^–

What happens to the water

Raw water

SBA (Cl)

Denitrated water

Conventional SBA resins can be used, but they also remove sulphate from water. See the selectivity table. Depending on the resin type, some (selective resins) or all (non-selective) sulphate is removed. Bicarbonate is only removed partially at the beginning of the service run.

Uses

• Mainly municipal water treatment

Selective removal of various other contaminants

Selective removal of metals and other contaminants is mainly used for drinking water and for waste. Many of these applications require special resins: chelating resin making stable metal complexes, for instance.

Examples

• Removal of boron (boric acid) from drinking water
• Removal of nitrate from drinking water (shown above)
• Removal of perchlorate from drinking water
• Removal of heavy metals from waste: Cd, Cr, Fe, Hg, Ni, Pb, Zn

In many of these applications, a residual concentration in the µg/L range is possible.

Some contaminants are difficult to remove with ion exchange, due to a poor selectivity of the resins. Examples: As, F, Li. See the periodic system of the elements with some ion exchange data. See also the page about resin types (selective resins) and a separate page about ion exchange processes for drinking water.

Other information

Abbreviations
Resin types are usually abbreviated in these pages:

• SAC: strongly acidic cation exchange resin
• WAC: weakly acidic cation exchange resin
• SBA: strongly basic anion exchange resin
• WBA: weakly basic anion exchange resin

See a table with a complete list of abbreviations and units.

Water
See details about the water analysis as required for the above processes.
A special page is available about drinking water applications.

Ion exchange columns
Various column types are described in a separate page. Degasifiers as well, and basic principles of plant design.

Regeneration
See details about regeneration processes, quantities and concentrations of regenerants.

Ion exchange reactions
A full page describes reaction equilibrium and chemical reactions of these resins.
